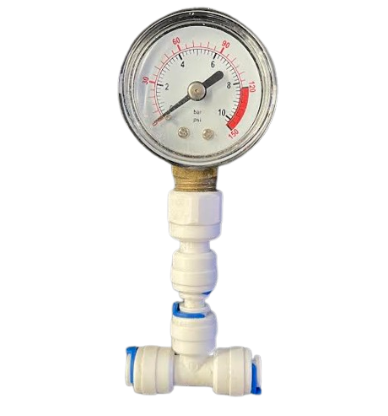

The 1/4" Reverse Osmosis Pressure Gauge with Push-Fit T-Connector is a ready-to-install kit designed to monitor water pressure in RO/DI purification systems.
Equipped with an integrated 1-150 PSI dual-scale dial and an easy-setup 1/4" quick-connect T-fitting, it allows you to splice directly into your water line to track pump performance and filter lifespan.
Product Overview
Take the guesswork out of water filtration with our 1/4" RO/DI Pressure Gauge Assembly. Maintaining correct water pressure is vital for maximizing pure water production and saving your DI resin from premature exhaustion. This complete kit features a clear, high-contrast pressure gauge pre-fitted to a standard 1/4" push-to-connect T-fitting. Designed to splice effortlessly into your system's existing 1/4" poly tubing, it provides instantaneous, real-time pressure tracking to protect your RO membrane and maintain peak efficiency.
Key Features
-
Complete Plug-and-Play Kit: Comes pre-assembled with a standard 1/4" push-fit T-connector and locking blue clips, allowing you to slice your existing 1/4" RO line and pop it right in.
-
Wide 1-150 PSI Scale: Features a clear dial face displaying up to 150 PSI (10 Bar), with a highlighted red safety warning zone between 120 and 150 PSI to easily spot dangerous pressure spikes.
-
Optimized for RO/DI Systems: Perfect for monitoring source tap pressure, booster pump output, or input pressure directly before the RO membrane in aquarium, lab, or hydroponic systems.
-
Troubleshoot Filters Instantly: A sudden drop in pressure on the dial quickly alerts you to clogged sediment filters, fouled carbon blocks, or a failing supply line before your water quality drops.
Specifications
-
Tubing Compatibility: 1/4" OD (Outer Diameter) Polyethylene RO Tubing
-
Fitting Type: Push-to-connect (Quick-Connect) T-Fitting with locking clips
-
Pressure Range: 0–150 PSI / 0–10 Bar
-
Application: Reverse Osmosis (RO) and Deionization (DI) water filtration systems
