Product overview

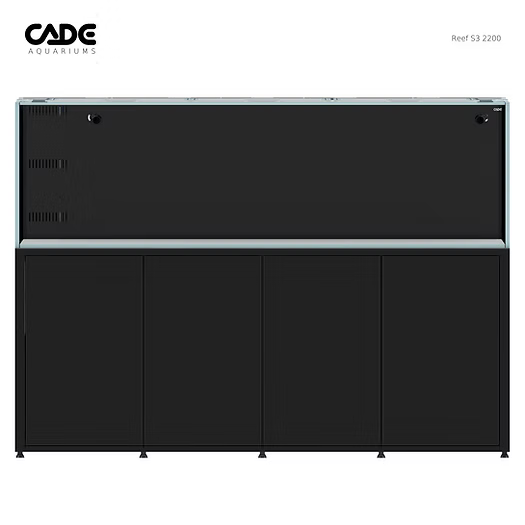

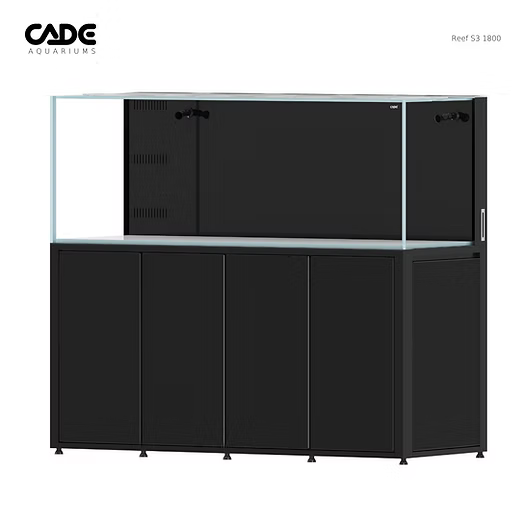

The CADE Reef S3 is a front-facing marine aquarium with Opti-Clear glass, a rear weir, and a waterproof aluminium cabinet. The display is 700–800 mm front to back, so rockwork and coral have depth without crowding the front pane.

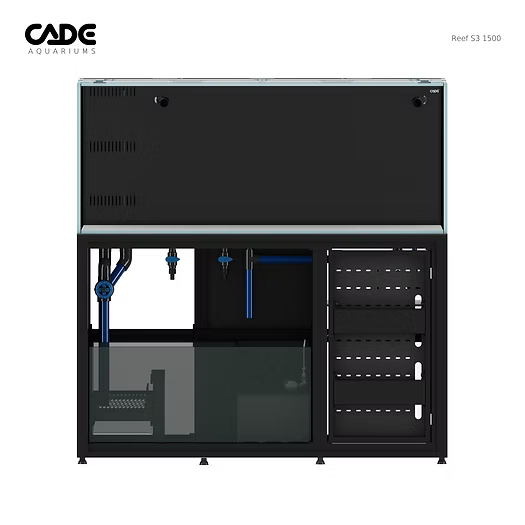

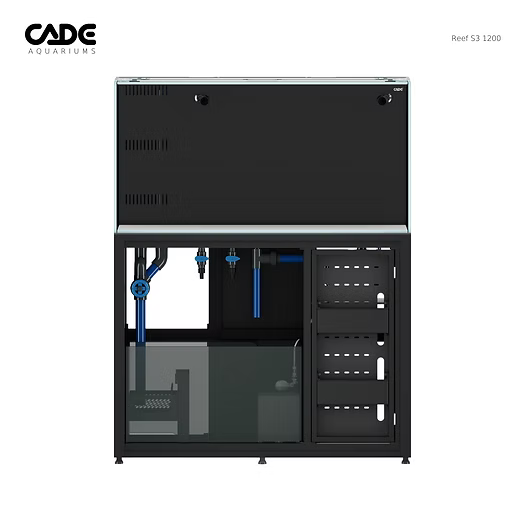

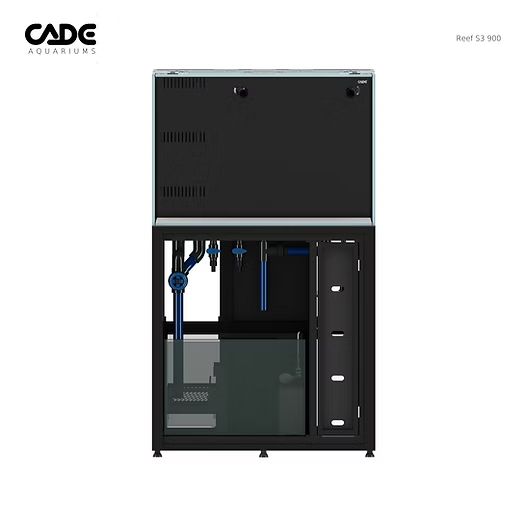

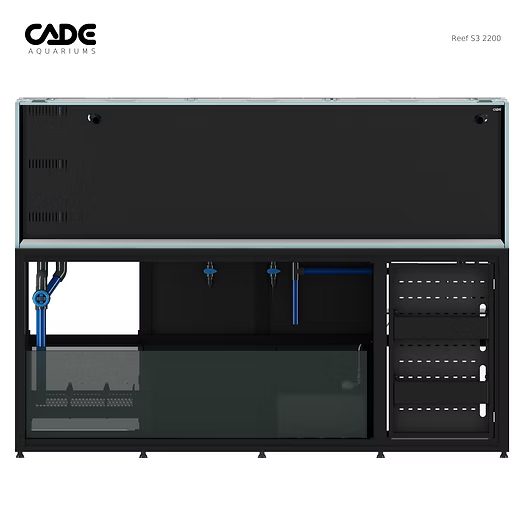

All plumbing runs through a slim black glass weir at the back of the tank. The 900 mm cabinet arrives built and holds a multi-stage glass sump plus a dry power area.
Key features
-

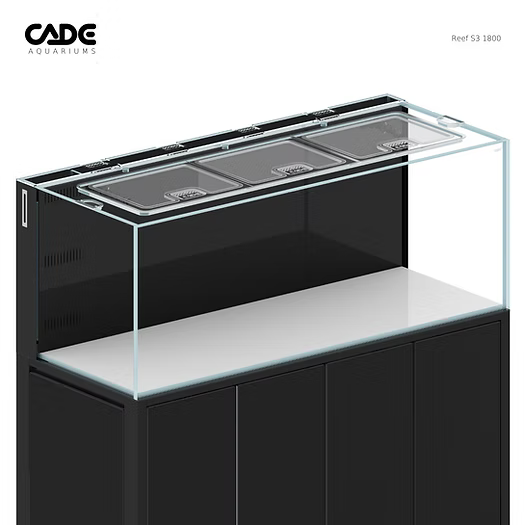

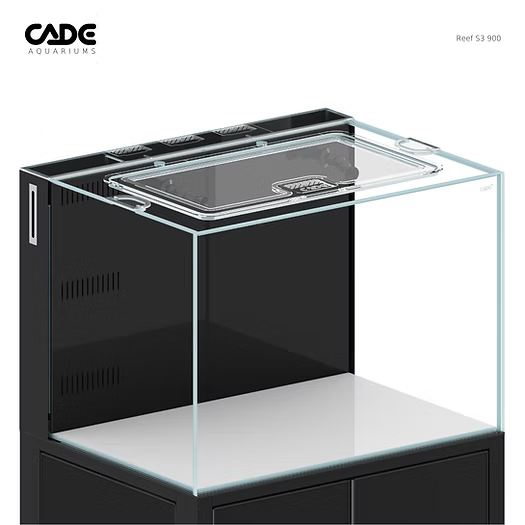

Opti-Clear glass: Low-iron panels with German silicone seams. Polycarbonate mesh jump guard included.
-

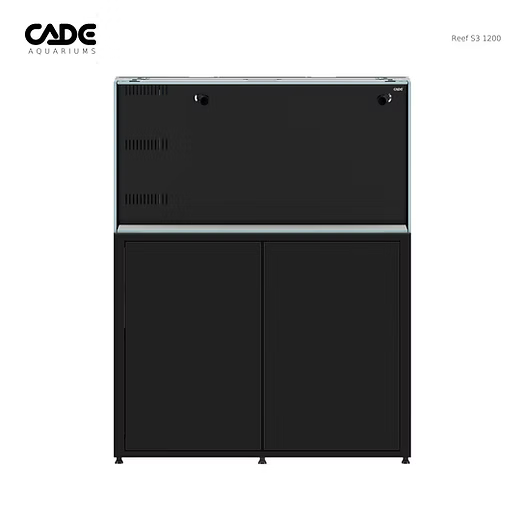

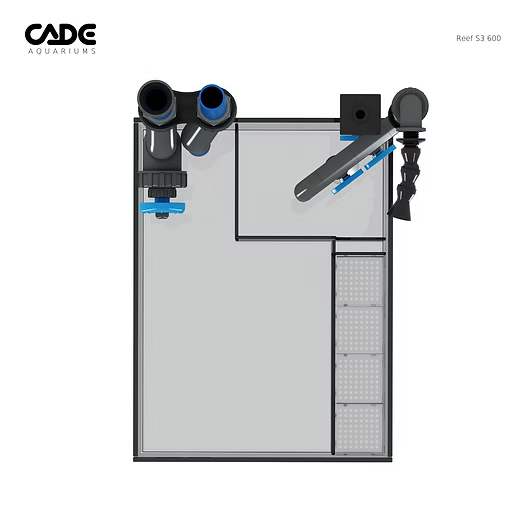

Rear weir: Triple intake (surface, mid, and lower) to take waste from the full water column, with backup if one intake blocks.
-

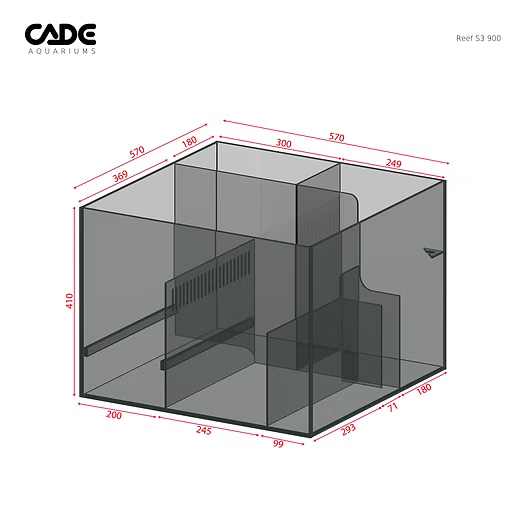

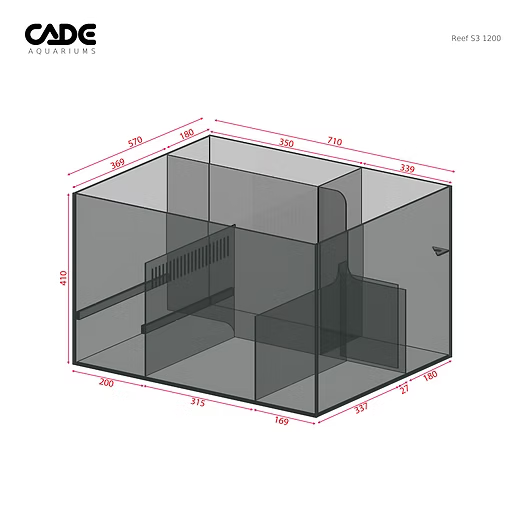

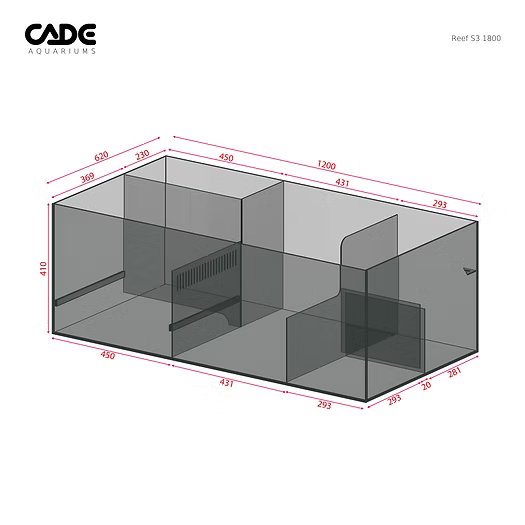

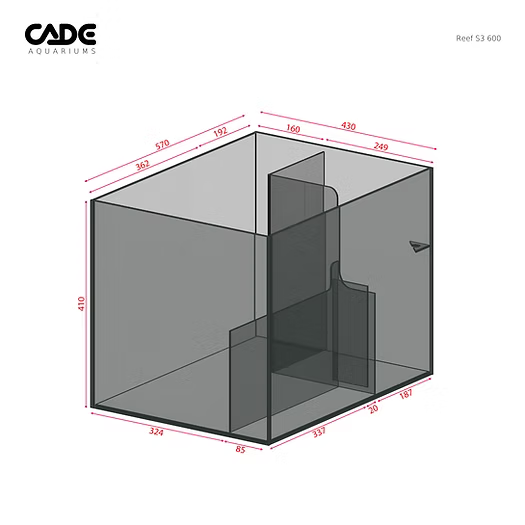

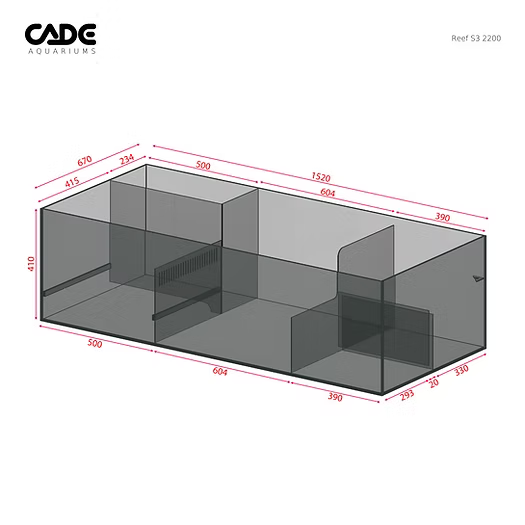

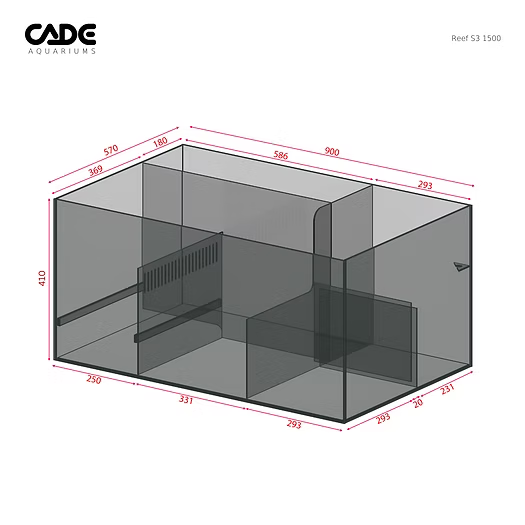

Sump: Roller-mat ready mechanical chamber instead of filter socks, then a Triton-ready refugium tray.
-

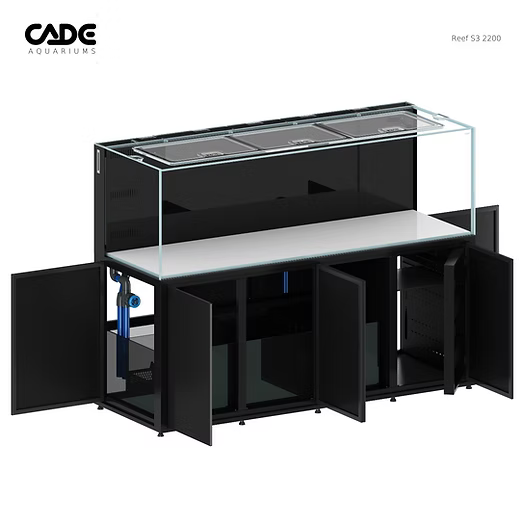

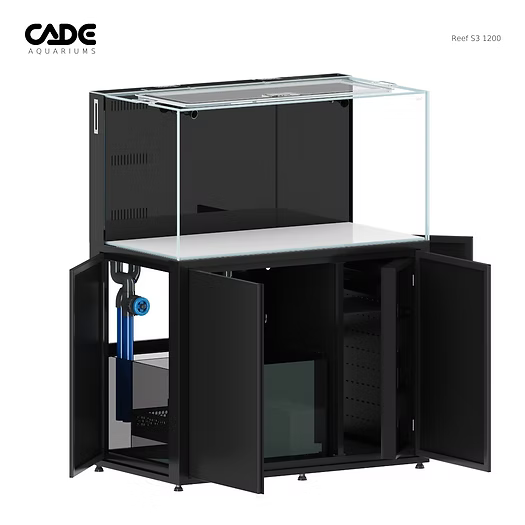

Power: Side display doors, cable channels, and switched outlet boards with lit rocker switches.
-

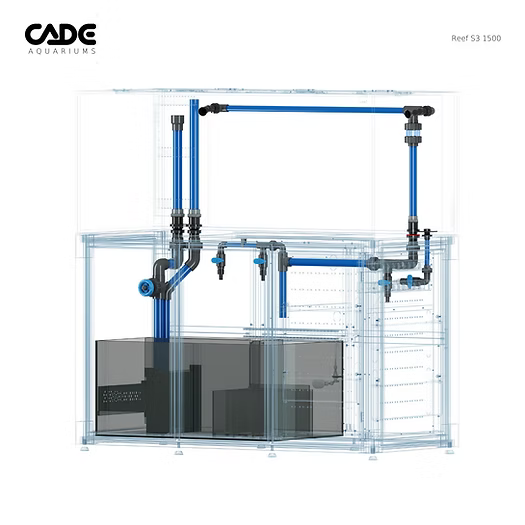

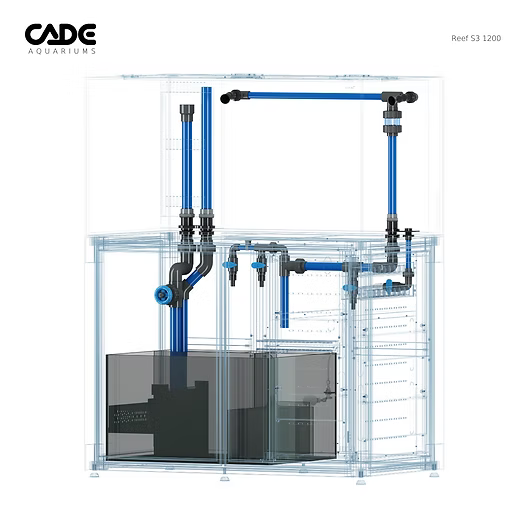

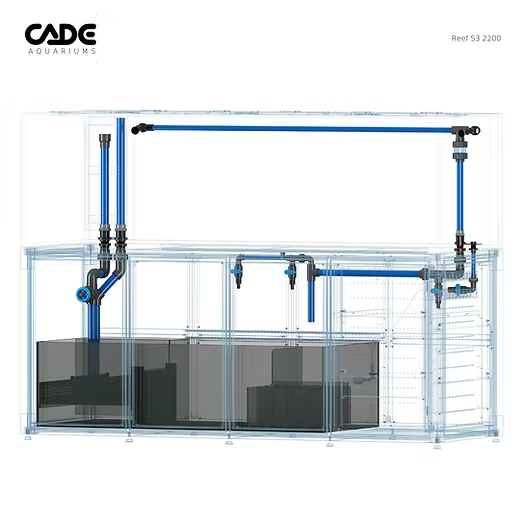

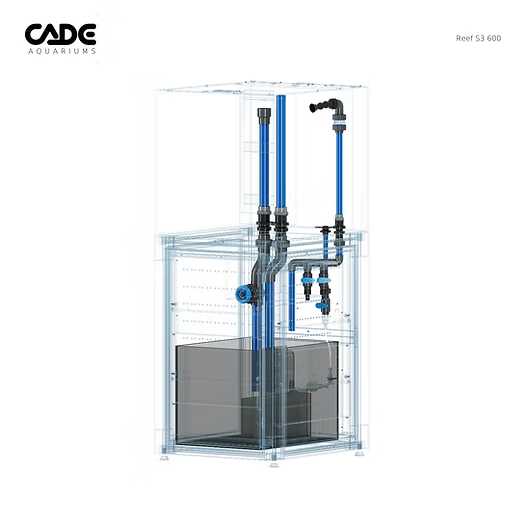

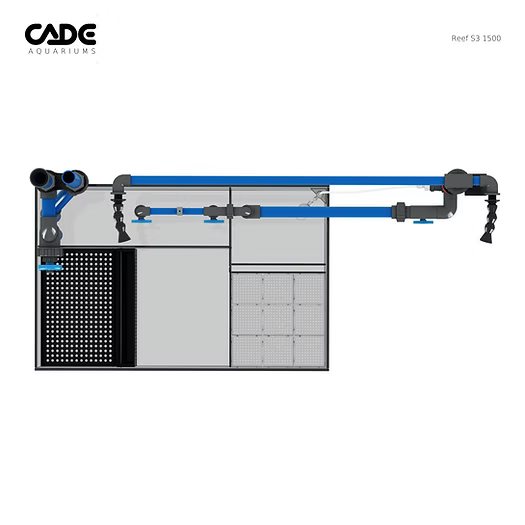

Plumbing: Colour-coded Sanking pipe that screws together. No PVC glue.
-

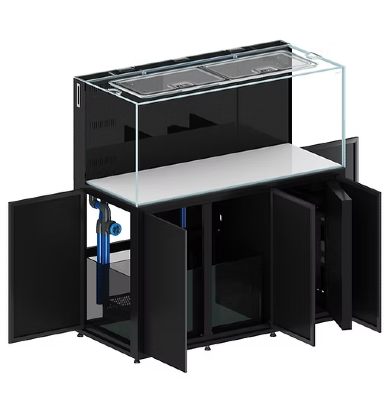

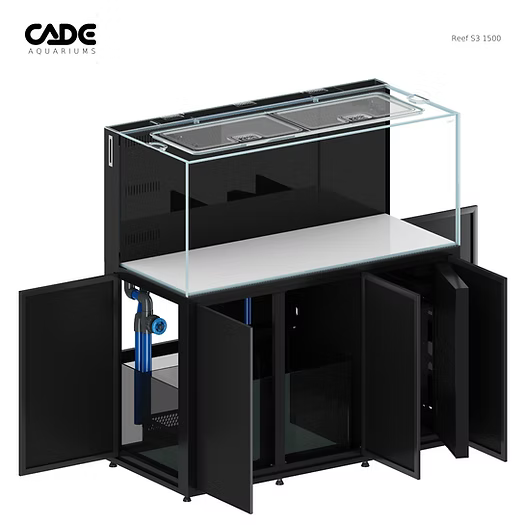

Cabinet: Anodised aluminium frame, glass panels, and rust-proof hinges. No timber to swell or rot.
Water and system compatibility
-
Water: Marine and reef only. Not for freshwater.
-
System: Full display, cabinet, sump, ATO, and plumbing package. Front-facing tank with the weir at the back, not a peninsula.
Colour
-

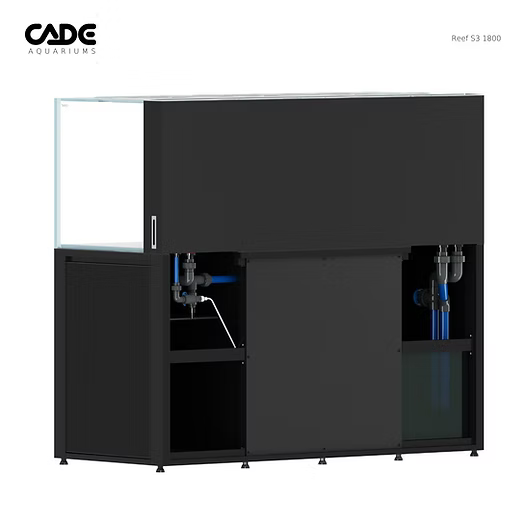

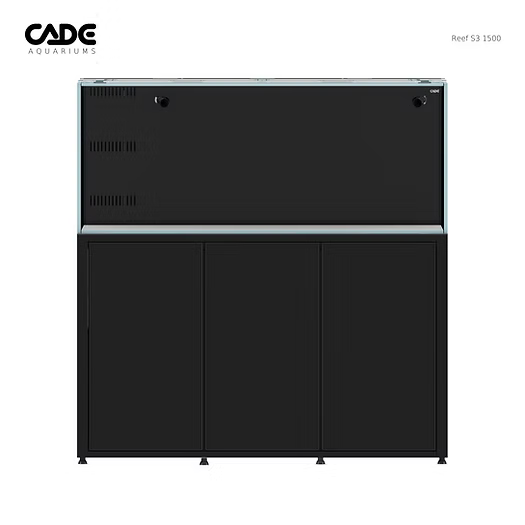

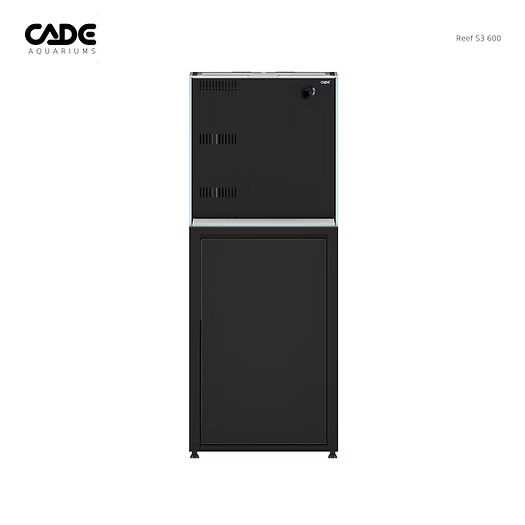

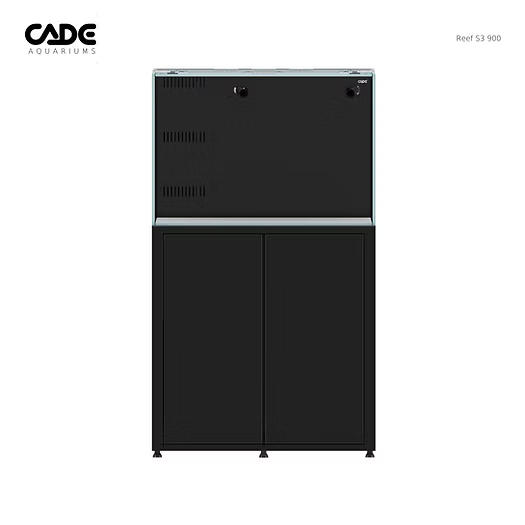

Black: Black glass cabinet doors and matching anodised frame.
-

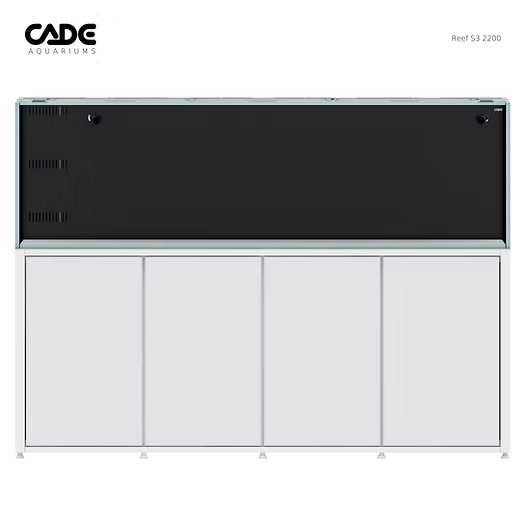

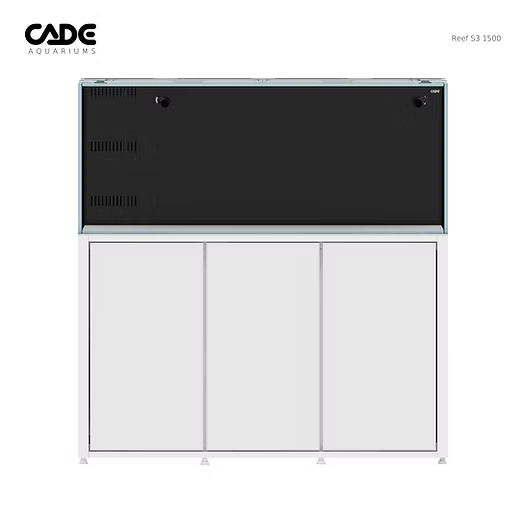

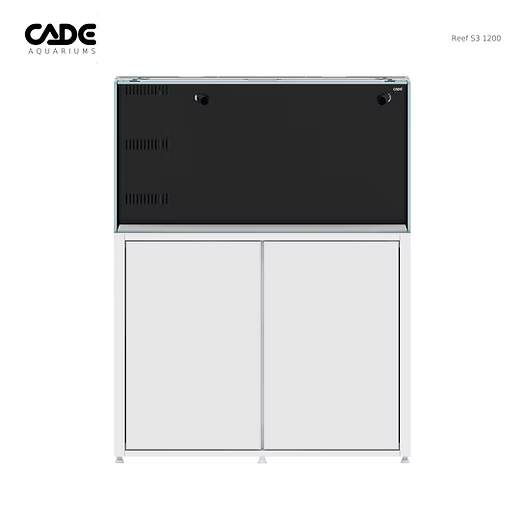

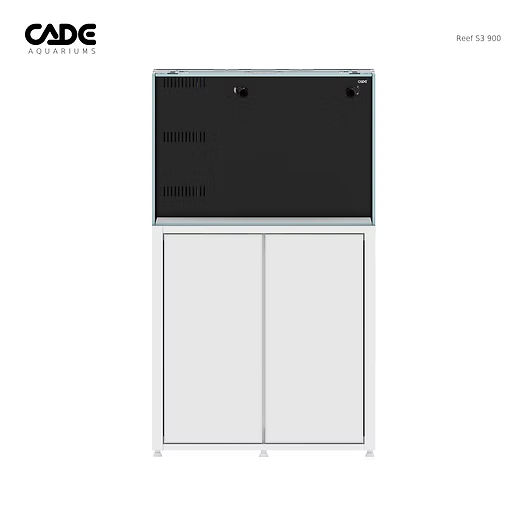

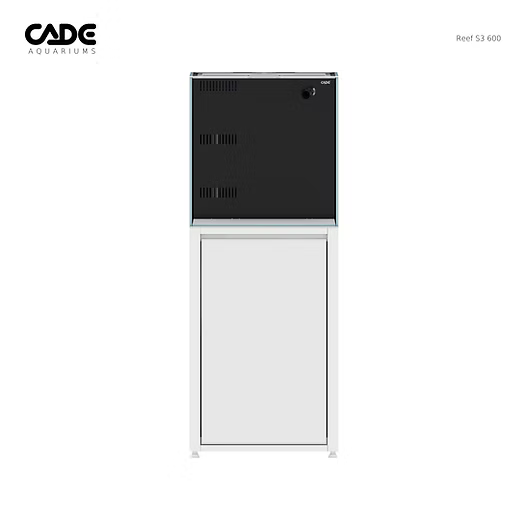

White: White glass cabinet doors and matching frame.
What's included
- Cabinet, built.
- Display tank.
- Glass multi-stage sump.
- Screw-together plumbing. No glue.
- Polycarbonate mesh jump guard.
Specifications
| Specification |
S3 600 |
S3 900 |
S3 1200 |
S3 1500 |
S3 1800 |
S3 2200 |
| Tank (L × W × H) |
600 × 700 × 600 mm |
900 × 700 × 600 mm |
1200 × 700 × 610 mm |
1500 × 750 × 610 mm |
1800 × 750 × 660 mm |
2200 × 800 × 660 mm |
| Cabinet (L × W × H) |
600 × 700 × 900 mm |
900 × 700 × 900 mm |
1200 × 700 × 900 mm |
1500 × 750 × 900 mm |
1800 × 750 × 900 mm |
2200 × 800 × 900 mm |
| Glass |
10 mm |
12 mm |
12 mm |
15 mm |
15 mm |
19 mm |
| Display volume |
216 L |
324 L |
Approx. 440 L |
Approx. 610 L |
Approx. 785 L |
Approx. 1,001 L |
| Total system volume |
266 L |
373 L |
Approx. 512 L |
Approx. 720 L |
Approx. 925 L |
Approx. 1,225 L |
| ATO reservoir |
16.4 L |
25.7 L |
Approx. 28 L |
Approx. 38 L |
Approx. 45 L |
Approx. 55 L |
| Cabinet power sockets |
8 |
16 |
16 |
16 |
16 |
16 |
| Auxiliary reactor feeds |
1 |
2 |
3 |
3 |
3 |
3 |
Which model
-

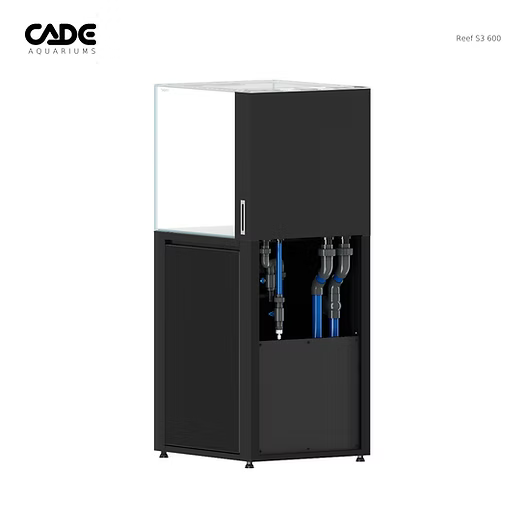

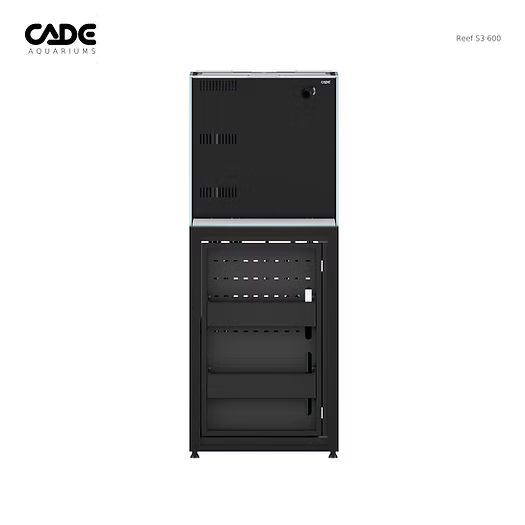

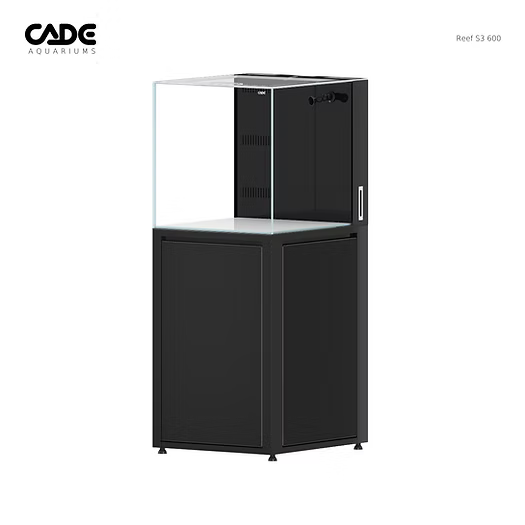

S3 600 and 900: Smaller rooms, offices, or feature spots. Same depth as the larger tanks in a shorter length. 10–12 mm glass.
-
S3 1200 and 1500: Standard mixed reefs. 12–15 mm glass and a larger under-cabinet sump.
-

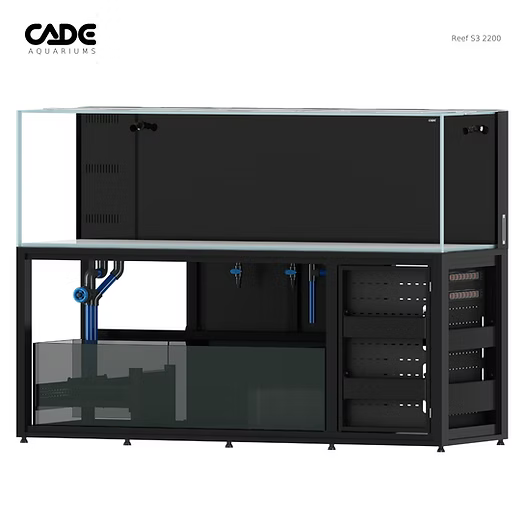

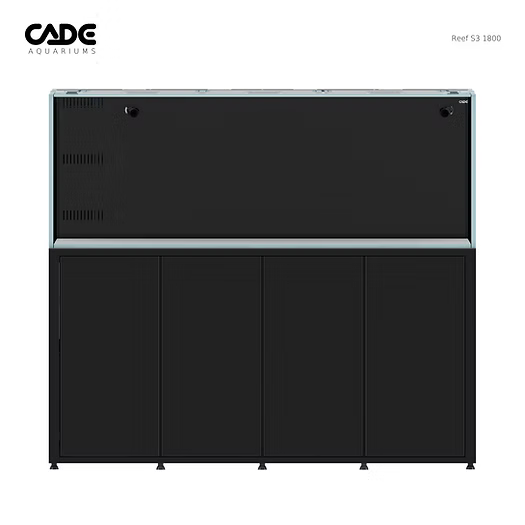

S3 1800 and 2200: Wide displays, heavier livestock, or large SPS. 15–19 mm glass and more cabinet space for bigger gear.
Installation
The cabinet arrives built. Plumbing is colour-coded Sanking pipe that screws together. No glue.
