Aqua One Aqua Fill automatic top-up unit

Product overview

The Aqua One AquaFill Automatic Top Up Unit keeps the water level steady in a tank or sump. It replaces evaporated water in small doses of fresh water so marine salinity does not creep up.

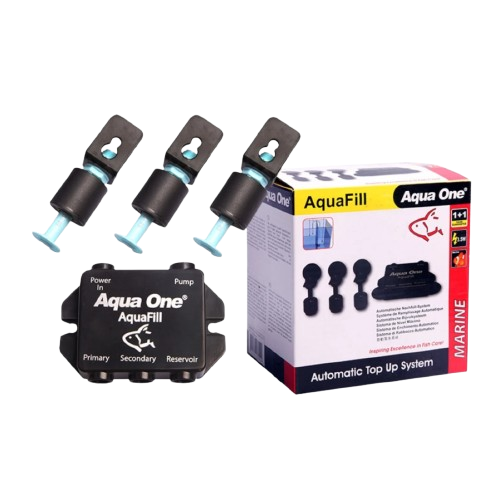

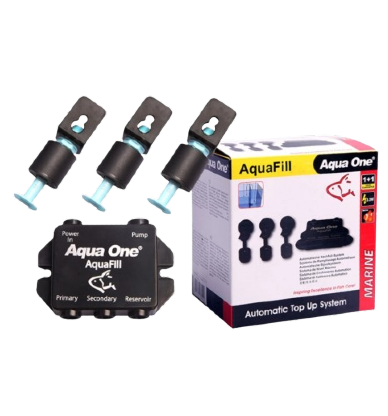

A three-float switch set stops the level falling too far and shuts the pump off if the reservoir runs dry.

Key features

• Salinity: Tops up evaporated water so salt does not concentrate.
• Three floats: Two in the tank/sump for the target level; one in the reservoir for an empty tank.
• Dry-run: Cuts power to the pump if the RO reservoir is empty, so the motor is not run dry.
• Sump: Fits a rear filter chamber or a stand-alone under-tank sump.

Switches

Care and instructions

Always follow directions on product packaging.

• Setup: Mount the primary and secondary floats at the target water line. Put the pump in a dedicated reservoir of RO or dechlorinated freshwater. Wire everything to the control box.
• Reservoir: Never fill the top-up reservoir with saltwater. Salt does not evaporate; topping up with saltwater will raise salinity.
• Checks: Inspect floats weekly for salt creep or algae. Clean the pump impeller at least once a month.

Specifications

• Brand: Aqua One
• Flow: 200 L/h
• Power: 3.5 W
• Product code: 50101
• Use: Marine, reef, and freshwater tanks or sumps
